MS27505E15F03PN

Part Number:MS27505E15F03PN

Product Description:

MIL-DTL-38999 Series Ⅰ is a high-reliability, three-contact connector designed to meet the requirements of MIL-DTL-38999, the standard for connectors. It offers a voltage rating of 500V, and it is a crimp-style connector with a shell size of 15. The connector's contacts are constructed with electroless nickel, making them highly resistant to corrosion and wear. The MIL-DTL-38999 Series Ⅰ connector is compliant with the requirements of MS27505 and is designed for use in mission-critical applications.

Features:

• Product Name: MIL-DTL-38999 Series Ⅰ
• Contact Material: Copper Alloy
• Current Rating: 7.5 A
• Insert Arrangement: 19-35
• Number of Contacts: 3
• Connector Type: Circular

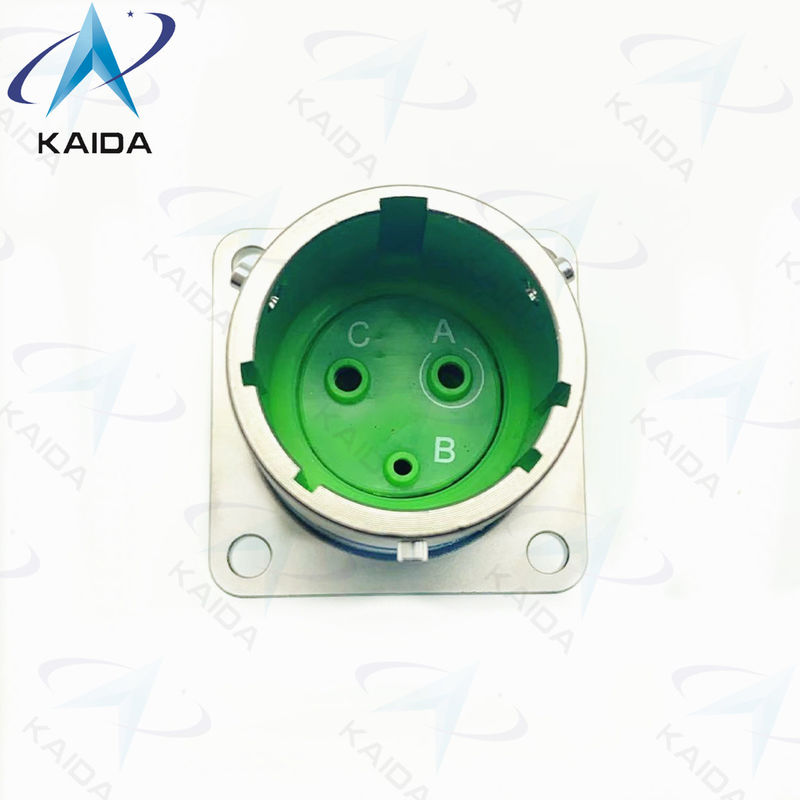

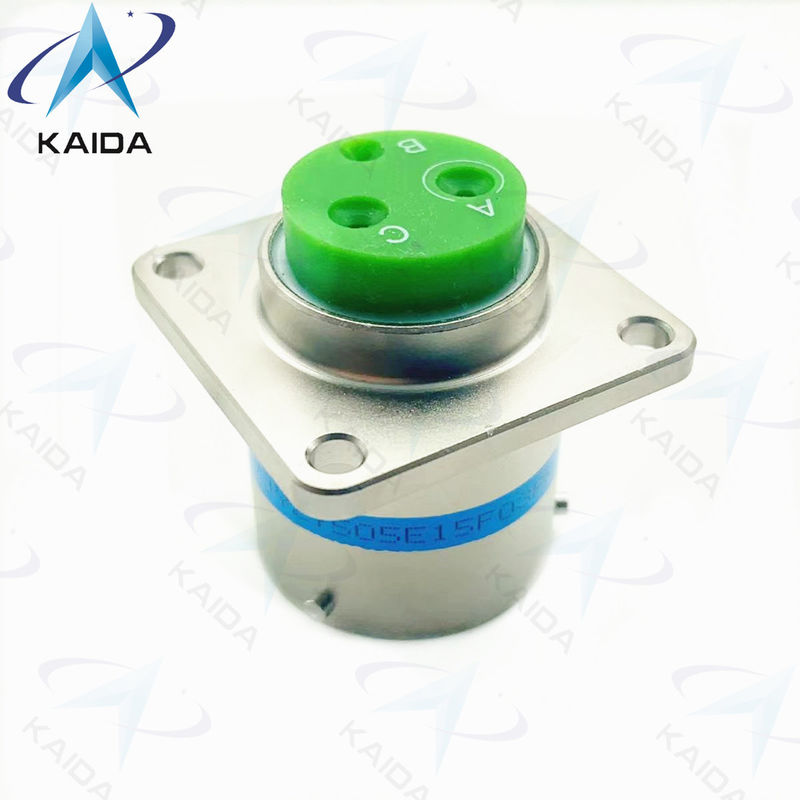

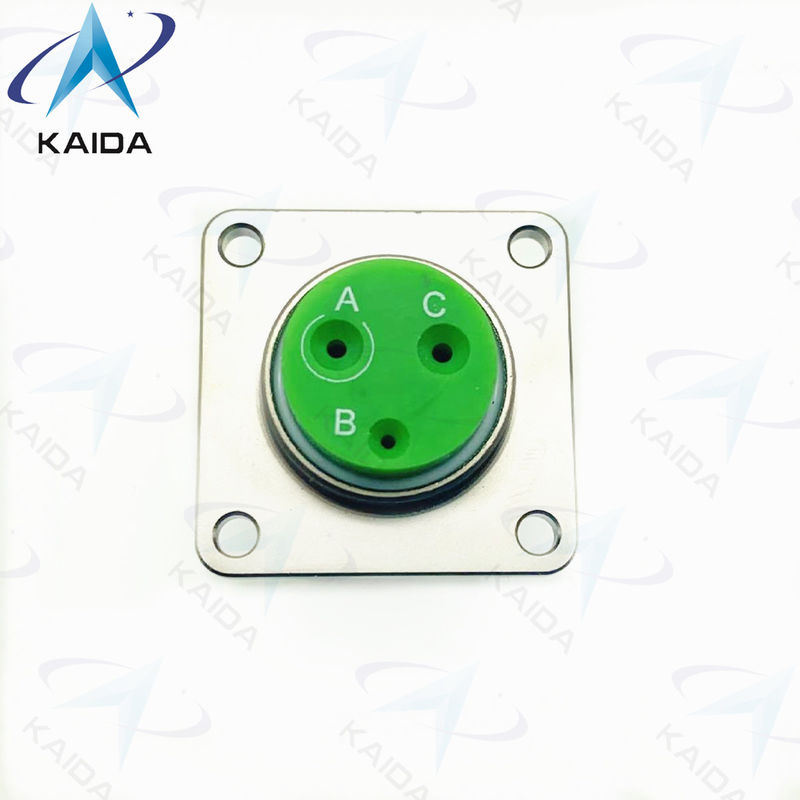

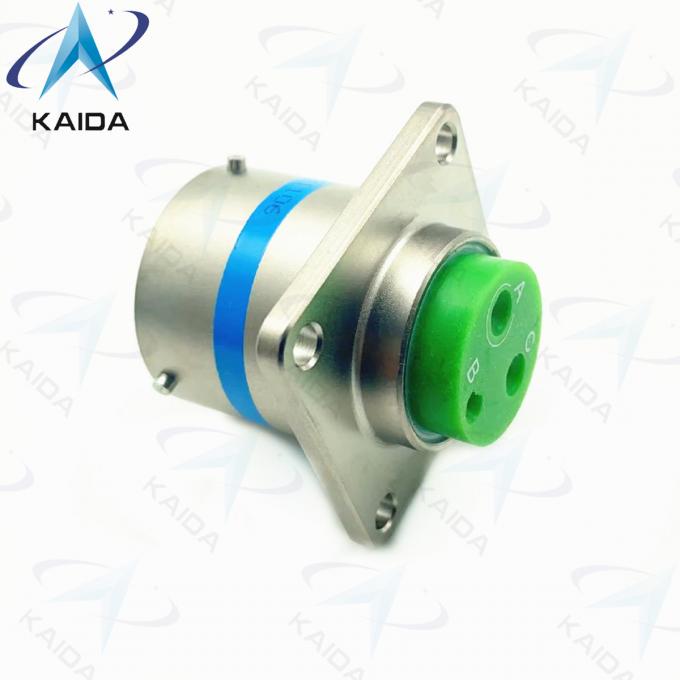

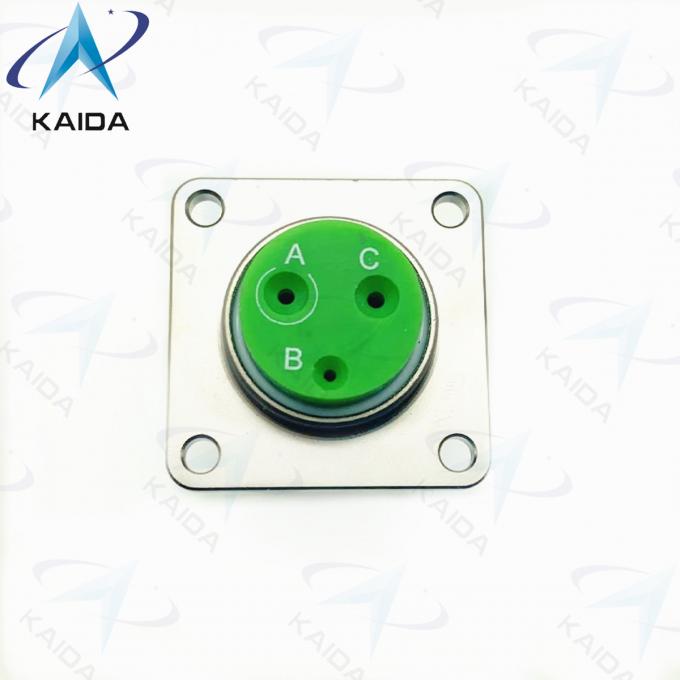

• MS27505E15F03PN: Rear box mount receptacle

Technical Parameters:

Applications:

The MS27505E15F03PN is a MIL-DTL-38999 Series Ⅰ product designed and manufactured by KAIDA, which is made in China. It has an insert arrangement of 19-35 and a shell size of 15. The product is plated with electroless nickel to provide a corrosion resistant finish. It is also designed with a mounting type of crimp, which makes it suitable for various industrial applications. The MS27505E15F03PN MIL-DTL-38999 Series Ⅰ is a reliable and robust product designed to withstand harsh environments and provide a long service life. It is widely used in aerospace, , and other industries. The product can be used in high vibration, high temperature, and extreme environmental conditions, making it an ideal choice for many applications.

Customization:

MIL-DTL-38999 Series Ⅰ from KAIDA is a light weight connector with MS27505E15F03PN made in China. It has 3 contacts with 19-35 insert arrangement and can handle 7.5A of current at 500V voltage rating.

Support and Services:

MIL-DTL-38999 Series Ⅰ offers technical support and services, including:

• Design and installation support
• Compatibility testing
• Product troubleshooting
• Maintenance and repair services
• Product customization
• Warranty and replacement services

Packing and Shipping:

The MIL-DTL-38999 Series Ⅰ product must be packaged and shipped in accordance with the following requirements:

• The product must be protected by a double-walled corrugated box.
• The box must be sealed with tape.
• The box must be labeled with the part number, quantity, and customer name.
• The box must be clearly labeled with the words “Fragile” and “Handle with Care”.
• The box must be shipped with a carrier who offers tracking services.

FAQ:

Q: What is MIL-DTL-38999 Series I?

A: MIL-DTL-38999 Series I is a -grade circular connector series from KAIDA, a trusted brand made in China. It is designed to meet the stringent requirements of the industry.

Q: What is the model number of KAIDA MIL-DTL-38999 Series I?

A: The model number of KAIDA MIL-DTL-38999 Series I is MS27505E15F03PN.

Q: What applications can KAIDA MIL-DTL-38999 Series I connectors be used for?

A: KAIDA MIL-DTL-38999 Series I connectors are designed to be used in a variety of harsh environments, such as , aerospace, and industrial applications.

Q: What are the features of KAIDA MIL-DTL-38999 Series I?

A: KAIDA MIL-DTL-38999 Series I connectors feature a high level of performance, including high vibration resistance, high shock resistance, high reliability, and high environmental resistance.

Q: What materials are used for KAIDA MIL-DTL-38999 Series I connectors?

A: KAIDA MIL-DTL-38999 Series I connectors use high-quality materials such as aluminum and steel to ensure durability and long-term performance.
